Broadcaster源码解读

注册广播

动态注册

时序图

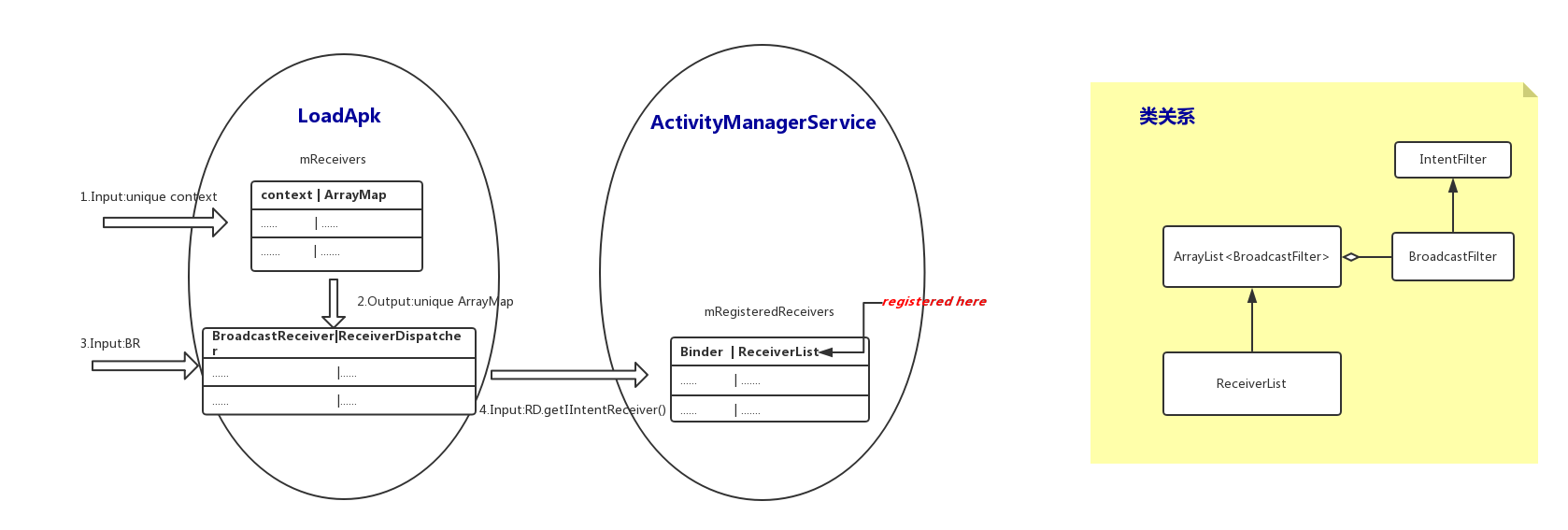

广播的存储

静态注册

/**
  ResolveInfo has member ActivityInfo,witch
 The activity or broadcast receiver that corresponds to this resolution
 match, if this resolution is for an activity or broadcast receiver.
 **/
Route:
ActivityManagerService collectReceiverComponents ->
PackageManagerService queryIntentReceivers:List<ResolveInfo>

发送广播

路径

context sendBroadcast->
contextImpl sendBroadcast ->
ActivityManagerService broadcastIntent[src] ->
ActivityManagerService broadcastIntentLocked [src]->
BroadcastQueue.scheduleBroadcastsLocked()->
BroadcastQueue.processNextBroadcast ->
BroadcastQueue.deliverToRegisteredReceiverLocked->
BroadcastQueue.performReceiveLocked -> //two ways
app.thread.scheduleRegisteredReceiver(receiver, intent, resultCode,data, extras, ordered, sticky,    sendingUser, app.repProcState)[here app.thread = activityThread.ApplicationThread ; receiver =  LoadApk.IIntentReceiver receiver] ->
LoadApk.performReceive()->
LoadApk.Args.run()->
receiver.onReceive(mContext, intent)

broadcastIntent

/**
 * callingPid:// process indetify.
 * callingUid:// for indetify the same user ,use this id to read and write share datas cross     multify app;
 *             // if uid is same ,first your should use the same signature
 * -------------
 * pid simply used by if(pid == MY_PID)
 *  ------------
 * uid = userId * 100000  + appId
 * -------------
 * Relative Method:
 * isSameUser	    比较两个uid的userId是否相同
 * isSameApp	    比较两个uid的appId是否相同
 * isApp	        appId是否属于区间[10000,19999]
 * isIsolated	    appId是否属于区间[99000,99999]
 * getIdentifier	获取UserHandle所对应的userId
 * -------------
 *
 * @param caller
 * @param intent
 * @param resolvedType
 * @param resultTo
 * @param resultCode
 * @param resultData
 * @param resultExtras
 * @param requiredPermissions
 * @param appOp
 * @param options
 * @param serialized
 * @param sticky
 * @param userId
 * @return
 */
public final int broadcastIntent(IApplicationThread caller,
        Intent intent, String resolvedType, IIntentReceiver resultTo,
        int resultCode, String resultData, Bundle resultExtras,
        String[] requiredPermissions, int appOp, Bundle options,
        boolean serialized, boolean sticky, int userId) {
    enforceNotIsolatedCaller("broadcastIntent");
    synchronized(this) {
        intent = verifyBroadcastLocked(intent);

        final ProcessRecord callerApp = getRecordForAppLocked(caller);
        final int callingPid = Binder.getCallingPid();
        final int callingUid = Binder.getCallingUid();
        final long origId = Binder.clearCallingIdentity();
        int res = broadcastIntentLocked(callerApp,
                callerApp != null ? callerApp.info.packageName : null,
                intent, resolvedType, resultTo, resultCode, resultData, resultExtras,
                requiredPermissions, appOp, null, serialized, sticky,
                callingPid, callingUid, userId);
        Binder.restoreCallingIdentity(origId);
        return res;
    }
}

broadcastIntentLocked

   /**
     * Things to do:
     * 1.addFlags(Intent.FLAG_EXCLUDE_STOPPED_PACKAGES) protected the app which is not running even or kill the
     * process by user control
     *
     * 2.deal with protection () uid,phoneid or isProtectedBroadcast(eg:screen on ,screen off )
     *
     * 3.deal with package BroadCast(eg: remove ,add etc.) and systerm BroadCast (eg:Intent.ACTION_TIMEZONE_CHANGED )
     *
     * 4.update stick broadcast.record the broadcast if it is not start
     *
     * 5.queue.enqueueParallelBroadcastLocked(r);//add
     *   queue.scheduleBroadcastsLocked();//deliver[ruler comes into BroadcastQueue.processNextBroadcast()]
     *
     *
     *
     *
     *
     *
     *
     *
     * @param callerApp
     * @param callerPackage
     * @param intent
     * @param resolvedType
     * @param resultTo
     * @param resultCode
     * @param resultData
     * @param resultExtras
     * @param requiredPermissions
     * @param appOp
     * @param options
     * @param ordered
     * @param sticky
     * @param callingPid
     * @param callingUid
     * @param userId
     * @return
     */
    private final int broadcastIntentLocked(ProcessRecord callerApp,
            String callerPackage, Intent intent, String resolvedType,
            IIntentReceiver resultTo, int resultCode, String resultData,
            Bundle resultExtras, String[] requiredPermissions, int appOp, Bundle options,
            boolean ordered, boolean sticky, int callingPid, int callingUid, int userId) {
        intent = new Intent(intent);

      //1.addFlags(Intent.FLAG_EXCLUDE_STOPPED_PACKAGES) protected the app which is not running  e ven or kill the process by user control

        // By default broadcasts do not go to stopped apps.
        intent.addFlags(Intent.FLAG_EXCLUDE_STOPPED_PACKAGES);

        // If we have not finished booting, don't allow this to launch new processes.
        if (!mProcessesReady && (intent.getFlags()&Intent.FLAG_RECEIVER_BOOT_UPGRADE) == 0) {
            intent.addFlags(Intent.FLAG_RECEIVER_REGISTERED_ONLY);
        }

        if (DEBUG_BROADCAST_LIGHT) Slog.v(TAG_BROADCAST,
                (sticky ? "Broadcast sticky: ": "Broadcast: ") + intent
                + " ordered=" + ordered + " userid=" + userId);
        if ((resultTo != null) && !ordered) {
            Slog.w(TAG, "Broadcast " + intent + " not ordered but result callback requested!");
        }

        userId = handleIncomingUser(callingPid, callingUid, userId,
                true, ALLOW_NON_FULL, "broadcast", callerPackage);

        // Make sure that the user who is receiving this broadcast is running.
        // If not, we will just skip it. Make an exception for shutdown broadcasts
        // and upgrade steps.

        if (userId != UserHandle.USER_ALL && !isUserRunningLocked(userId, false)) {
            if ((callingUid != Process.SYSTEM_UID
                    || (intent.getFlags() & Intent.FLAG_RECEIVER_BOOT_UPGRADE) == 0)
                    && !Intent.ACTION_SHUTDOWN.equals(intent.getAction())) {
                Slog.w(TAG, "Skipping broadcast of " + intent
                        + ": user " + userId + " is stopped");
                return ActivityManager.BROADCAST_FAILED_USER_STOPPED;
            }
        }
     //2.deal with protection () uid,phoneid or isProtectedBroadcast(eg:screen on ,screen off )
        BroadcastOptions brOptions = null;
        if (options != null) {
            brOptions = new BroadcastOptions(options);
            if (brOptions.getTemporaryAppWhitelistDuration() > 0) {
                // See if the caller is allowed to do this.  Note we are checking against
                // the actual real caller (not whoever provided the operation as say a
                // PendingIntent), because that who is actually supplied the arguments.
                if (checkComponentPermission(
                        android.Manifest.permission.CHANGE_DEVICE_IDLE_TEMP_WHITELIST,
                        Binder.getCallingPid(), Binder.getCallingUid(), -1, true)
                        != PackageManager.PERMISSION_GRANTED) {
                    String msg = "Permission Denial: " + intent.getAction()
                            + " broadcast from " + callerPackage + " (pid=" + callingPid
                            + ", uid=" + callingUid + ")"
                            + " requires "
                            + android.Manifest.permission.CHANGE_DEVICE_IDLE_TEMP_WHITELIST;
                    Slog.w(TAG, msg);
                    throw new SecurityException(msg);
                }
            }
        }

        /*
         * Prevent non-system code (defined here to be non-persistent
         * processes) from sending protected broadcasts.
         */
        int callingAppId = UserHandle.getAppId(callingUid);
        if (callingAppId == Process.SYSTEM_UID || callingAppId == Process.PHONE_UID
            || callingAppId == Process.SHELL_UID || callingAppId == Process.BLUETOOTH_UID
            || callingAppId == Process.NFC_UID || callingUid == 0) {
            // Always okay.
        } else if (callerApp == null || !callerApp.persistent) {
            try {
                if (AppGlobals.getPackageManager().isProtectedBroadcast(
                        intent.getAction())) {
                    String msg = "Permission Denial: not allowed to send broadcast "
                            + intent.getAction() + " from pid="
                            + callingPid + ", uid=" + callingUid;
                    Slog.w(TAG, msg);
                    throw new SecurityException(msg);
                } else if (AppWidgetManager.ACTION_APPWIDGET_CONFIGURE.equals(intent.getAction())) {
                    // Special case for compatibility: we don't want apps to send this,
                    // but historically it has not been protected and apps may be using it
                    // to poke their own app widget.  So, instead of making it protected,
                    // just limit it to the caller.
                    if (callerApp == null) {
                        String msg = "Permission Denial: not allowed to send broadcast "
                                + intent.getAction() + " from unknown caller.";
                        Slog.w(TAG, msg);
                        throw new SecurityException(msg);
                    } else if (intent.getComponent() != null) {
                        // They are good enough to send to an explicit component...  verify
                        // it is being sent to the calling app.
                        if (!intent.getComponent().getPackageName().equals(
                                callerApp.info.packageName)) {
                            String msg = "Permission Denial: not allowed to send broadcast "
                                    + intent.getAction() + " to "
                                    + intent.getComponent().getPackageName() + " from "
                                    + callerApp.info.packageName;
                            Slog.w(TAG, msg);
                            throw new SecurityException(msg);
                        }
                    } else {
                        // Limit broadcast to their own package.
                        intent.setPackage(callerApp.info.packageName);
                    }
                }
            } catch (RemoteException e) {
                Slog.w(TAG, "Remote exception", e);
                return ActivityManager.BROADCAST_SUCCESS;
            }
        }
//3.deal with package BroadCast(eg: remove ,add etc.) and systerm BroadCast (eg:Intent.ACTION_TIMEZONE_CHANGED )
        final String action = intent.getAction();
        if (action != null) {
            switch (action) {
                case Intent.ACTION_UID_REMOVED:
                case Intent.ACTION_PACKAGE_REMOVED:
                case Intent.ACTION_PACKAGE_CHANGED:
                case Intent.ACTION_EXTERNAL_APPLICATIONS_UNAVAILABLE:
                case Intent.ACTION_EXTERNAL_APPLICATIONS_AVAILABLE:
                    // Handle special intents: if this broadcast is from the package
                    // manager about a package being removed, we need to remove all of
                    // its activities from the history stack.
                    if (checkComponentPermission(
                            android.Manifest.permission.BROADCAST_PACKAGE_REMOVED,
                            callingPid, callingUid, -1, true)
                            != PackageManager.PERMISSION_GRANTED) {
                        String msg = "Permission Denial: " + intent.getAction()
                                + " broadcast from " + callerPackage + " (pid=" + callingPid
                                + ", uid=" + callingUid + ")"
                                + " requires "
                                + android.Manifest.permission.BROADCAST_PACKAGE_REMOVED;
                        Slog.w(TAG, msg);
                        throw new SecurityException(msg);
                    }
                    switch (action) {
                        case Intent.ACTION_UID_REMOVED:
                            final Bundle intentExtras = intent.getExtras();
                            final int uid = intentExtras != null
                                    ? intentExtras.getInt(Intent.EXTRA_UID) : -1;
                            if (uid >= 0) {
                                mBatteryStatsService.removeUid(uid);
                                mAppOpsService.uidRemoved(uid);
                            }
                            break;
                        case Intent.ACTION_EXTERNAL_APPLICATIONS_UNAVAILABLE:
                            // If resources are unavailable just force stop all those packages
                            // and flush the attribute cache as well.
                            String list[] =
                                    intent.getStringArrayExtra(Intent.EXTRA_CHANGED_PACKAGE_LIST);
                            if (list != null && list.length > 0) {
                                for (int i = 0; i < list.length; i++) {
                                    forceStopPackageLocked(list[i], -1, false, true, true,
                                            false, false, userId, "storage unmount");
                                }
                                mRecentTasks.cleanupLocked(UserHandle.USER_ALL);
                                sendPackageBroadcastLocked(
                                        IApplicationThread.EXTERNAL_STORAGE_UNAVAILABLE, list,
                                        userId);
                            }
                            break;
                        case Intent.ACTION_EXTERNAL_APPLICATIONS_AVAILABLE:
                            mRecentTasks.cleanupLocked(UserHandle.USER_ALL);
                            break;
                        case Intent.ACTION_PACKAGE_REMOVED:
                        case Intent.ACTION_PACKAGE_CHANGED:
                            Uri data = intent.getData();
                            String ssp;
                            if (data != null && (ssp=data.getSchemeSpecificPart()) != null) {
                                boolean removed = Intent.ACTION_PACKAGE_REMOVED.equals(action);
                                boolean fullUninstall = removed &&
                                        !intent.getBooleanExtra(Intent.EXTRA_REPLACING, false);
                                if (!intent.getBooleanExtra(Intent.EXTRA_DONT_KILL_APP, false)) {
                                    forceStopPackageLocked(ssp, UserHandle.getAppId(
                                            intent.getIntExtra(Intent.EXTRA_UID, -1)),
                                            false, true, true, false, fullUninstall, userId,
                                            removed ? "pkg removed" : "pkg changed");
                                }
                                if (removed) {
                                    sendPackageBroadcastLocked(IApplicationThread.PACKAGE_REMOVED,
                                            new String[] {ssp}, userId);
                                    if (fullUninstall) {
                                        mAppOpsService.packageRemoved(
                                                intent.getIntExtra(Intent.EXTRA_UID, -1), ssp);

                                        // Remove all permissions granted from/to this package
                                        removeUriPermissionsForPackageLocked(ssp, userId, true);

                                        removeTasksByPackageNameLocked(ssp, userId);
                                        mBatteryStatsService.notePackageUninstalled(ssp);
                                    }
                                } else {
                                    cleanupDisabledPackageComponentsLocked(ssp, userId,
                                            intent.getStringArrayExtra(
                                                    Intent.EXTRA_CHANGED_COMPONENT_NAME_LIST));
                                }
                            }
                            break;
                    }
                    break;
                case Intent.ACTION_PACKAGE_ADDED:
                    // Special case for adding a package: by default turn on compatibility mode.
                    Uri data = intent.getData();
                    String ssp;
                    if (data != null && (ssp = data.getSchemeSpecificPart()) != null) {
                        final boolean replacing =
                                intent.getBooleanExtra(Intent.EXTRA_REPLACING, false);
                        mCompatModePackages.handlePackageAddedLocked(ssp, replacing);

                        try {
                            ApplicationInfo ai = AppGlobals.getPackageManager().
                                    getApplicationInfo(ssp, 0, 0);
                            mBatteryStatsService.notePackageInstalled(ssp,
                                    ai != null ? ai.versionCode : 0);
                        } catch (RemoteException e) {
                        }
                    }
                    break;
                case Intent.ACTION_TIMEZONE_CHANGED:
                    // If this is the time zone changed action, queue up a message that will reset
                    // the timezone of all currently running processes. This message will get
                    // queued up before the broadcast happens.
                    mHandler.sendEmptyMessage(UPDATE_TIME_ZONE);
                    break;
                case Intent.ACTION_TIME_CHANGED:
                    // If the user set the time, let all running processes know.
                    final int is24Hour =
                            intent.getBooleanExtra(Intent.EXTRA_TIME_PREF_24_HOUR_FORMAT, false) ? 1
                                    : 0;
                    mHandler.sendMessage(mHandler.obtainMessage(UPDATE_TIME, is24Hour, 0));
                    BatteryStatsImpl stats = mBatteryStatsService.getActiveStatistics();
                    synchronized (stats) {
                        stats.noteCurrentTimeChangedLocked();
                    }
                    break;
                case Intent.ACTION_CLEAR_DNS_CACHE:
                    mHandler.sendEmptyMessage(CLEAR_DNS_CACHE_MSG);
                    break;
                case Proxy.PROXY_CHANGE_ACTION:
                    ProxyInfo proxy = intent.getParcelableExtra(Proxy.EXTRA_PROXY_INFO);
                    mHandler.sendMessage(mHandler.obtainMessage(UPDATE_HTTP_PROXY_MSG, proxy));
                    break;
            }
        }

        // Add to the sticky list if requested.
      //4.update stick broadcast.record the broadcast if it is not start
       //.......
        int[] users;
        if (userId == UserHandle.USER_ALL) {
            // Caller wants broadcast to go to all started users.
            users = mStartedUserArray;
        } else {
            // Caller wants broadcast to go to one specific user.
            users = new int[] {userId};
        }

        // Figure out who all will receive this broadcast.
        List receivers = null;
        List<BroadcastFilter> registeredReceivers = null;
        // Need to resolve the intent to interested receivers...
        if ((intent.getFlags()&Intent.FLAG_RECEIVER_REGISTERED_ONLY)
                 == 0) {
            receivers = collectReceiverComponents(intent, resolvedType, callingUid, users);
        }
        if (intent.getComponent() == null) {
            if (userId == UserHandle.USER_ALL && callingUid == Process.SHELL_UID) {
                // Query one target user at a time, excluding shell-restricted users
                UserManagerService ums = getUserManagerLocked();
                for (int i = 0; i < users.length; i++) {
                    if (ums.hasUserRestriction(
                            UserManager.DISALLOW_DEBUGGING_FEATURES, users[i])) {
                        continue;
                    }
                    List<BroadcastFilter> registeredReceiversForUser =
                            mReceiverResolver.queryIntent(intent,
                                    resolvedType, false, users[i]);
                    if (registeredReceivers == null) {
                        registeredReceivers = registeredReceiversForUser;
                    } else if (registeredReceiversForUser != null) {
                        registeredReceivers.addAll(registeredReceiversForUser);
                    }
                }
            } else {
                registeredReceivers = mReceiverResolver.queryIntent(intent,
                        resolvedType, false, userId);
            }
        }

      //5.delivery to broadcasteQueue
        final boolean replacePending =
                (intent.getFlags()&Intent.FLAG_RECEIVER_REPLACE_PENDING) != 0;

        if (DEBUG_BROADCAST) Slog.v(TAG_BROADCAST, "Enqueing broadcast: " + intent.getAction()
                + " replacePending=" + replacePending);

        int NR = registeredReceivers != null ? registeredReceivers.size() : 0;
        if (!ordered && NR > 0) {
            // If we are not serializing this broadcast, then send the
            // registered receivers separately so they don't wait for the
            // components to be launched.
            final BroadcastQueue queue = broadcastQueueForIntent(intent);
            BroadcastRecord r = new BroadcastRecord(queue, intent, callerApp,
                    callerPackage, callingPid, callingUid, resolvedType, requiredPermissions,
                    appOp, brOptions, registeredReceivers, resultTo, resultCode, resultData,
                    resultExtras, ordered, sticky, false, userId);
            if (DEBUG_BROADCAST) Slog.v(TAG_BROADCAST, "Enqueueing parallel broadcast " + r);
            final boolean replaced = replacePending && queue.replaceParallelBroadcastLocked(r);
            if (!replaced) {
                queue.enqueueParallelBroadcastLocked(r);// insert has native iiReceiverDispatch .
                queue.scheduleBroadcastsLocked(); //
            }
            registeredReceivers = null;
            NR = 0;
        }

       //......

        return ActivityManager.BROADCAST_SUCCESS;
    }

performReceiveLocked

/**
1. ActivityThread'ApplicationThread to wrok for the result
2. LoadApk.ReceiverDispatcher to wrok for the result
**/
private static void performReceiveLocked(ProcessRecord app, IIntentReceiver receiver,
            Intent intent, int resultCode, String data, Bundle extras,
            boolean ordered, boolean sticky, int sendingUser) throws RemoteException {
        // Send the intent to the receiver asynchronously using one-way binder calls.
        if (app != null) {
            if (app.thread != null) {
                // If we have an app thread, do the call through that so it is
                // correctly ordered with other one-way calls.
                app.thread.scheduleRegisteredReceiver(receiver, intent, resultCode,
                        data, extras, ordered, sticky, sendingUser, app.repProcState);
            } else {
                // Application has died. Receiver doesn't exist.
                throw new RemoteException("app.thread must not be null");
            }
        } else {
            receiver.performReceive(intent, resultCode, data, extras, ordered,
                    sticky, sendingUser);
        }
    }

LoadApk.ReceiverDispatcher:performReceive

public void performReceive(Intent intent, int resultCode, String data,
        Bundle extras, boolean ordered, boolean sticky, int sendingUser) {
    LoadedApk.ReceiverDispatcher rd = mDispatcher.get();
    if (ActivityThread.DEBUG_BROADCAST) {
        int seq = intent.getIntExtra("seq", -1);
        Slog.i(ActivityThread.TAG, "Receiving broadcast " + intent.getAction() + " seq=" + seq
                + " to " + (rd != null ? rd.mReceiver : null));
    }
    if (rd != null) {
        rd.performReceive(intent, resultCode, data, extras,
                ordered, sticky, sendingUser);
    } else {
        // The activity manager dispatched a broadcast to a registered
        // receiver in this process, but before it could be delivered the
        // receiver was unregistered.  Acknowledge the broadcast on its
        // behalf so that the system's broadcast sequence can continue.
        if (ActivityThread.DEBUG_BROADCAST) Slog.i(ActivityThread.TAG,
                "Finishing broadcast to unregistered receiver");
        IActivityManager mgr = ActivityManagerNative.getDefault();
        try {
            if (extras != null) {
                extras.setAllowFds(false);
            }
            mgr.finishReceiver(this, resultCode, data, extras, false, intent.getFlags());
        } catch (RemoteException e) {
            Slog.w(ActivityThread.TAG, "Couldn't finish broadcast to unregistered receiver");
        }
    }
}

LoadApk.ReceiverDispatcher.Args:run

   public void run() {
        final BroadcastReceiver receiver = mReceiver;
        final boolean ordered = mOrdered;

        if (ActivityThread.DEBUG_BROADCAST) {
            int seq = mCurIntent.getIntExtra("seq", -1);
            Slog.i(ActivityThread.TAG, "Dispatching broadcast " + mCurIntent.getAction()
                    + " seq=" + seq + " to " + mReceiver);
            Slog.i(ActivityThread.TAG, "  mRegistered=" + mRegistered
                    + " mOrderedHint=" + ordered);
        }

        final IActivityManager mgr = ActivityManagerNative.getDefault();
        final Intent intent = mCurIntent;
        mCurIntent = null;

        if (receiver == null || mForgotten) {
            if (mRegistered && ordered) {
                if (ActivityThread.DEBUG_BROADCAST) Slog.i(ActivityThread.TAG,
                        "Finishing null broadcast to " + mReceiver);
                sendFinished(mgr);
            }
            return;
        }

        Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "broadcastReceiveReg");
        try {
            ClassLoader cl =  mReceiver.getClass().getClassLoader();
            intent.setExtrasClassLoader(cl);
            setExtrasClassLoader(cl);
            receiver.setPendingResult(this);
            receiver.onReceive(mContext, intent);
        } catch (Exception e) {
            if (mRegistered && ordered) {
                if (ActivityThread.DEBUG_BROADCAST) Slog.i(ActivityThread.TAG,
                        "Finishing failed broadcast to " + mReceiver);
                sendFinished(mgr);
            }
            if (mInstrumentation == null ||
                    !mInstrumentation.onException(mReceiver, e)) {
                Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
                throw new RuntimeException(
                    "Error receiving broadcast " + intent
                    + " in " + mReceiver, e);
            }
        }

        if (receiver.getPendingResult() != null) {
            finish();
        }
        Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
    }
}

安全校验

等级

uid = userId * 100000 + appId

uid//进程功能的一种标识

ID的区间

uid

有root, system,radio,media等都属于系统uid定义在在Process.java文件，如下：

uid	值	含义
ROOT_UID	0	root uid
SYSTEM_UID	1000	用于systemserver进程
PHONE_UID	1001	telephony所属的uid
BLUETOOTH_UID	1002	蓝牙所属的uid
LOG_UID	1007	log所属的uid
WIFI_UID	1008
MEDIA_UID	1013	用于mediaserver进程
VPN_UID	1016
DRM_UID	1019
MEDIA_RW_GID	1023	具有写内部媒体存储权限的uid
……	……	……..

对于非systerm的uid会进行权限的检查

userId

userId	赋值	含义
USER_OWNER	0	拥有者
USER_ALL	-1	所有用户
USER_CURRENT	-2	当前活动用户
USER_CURRENT_OR_SELF	-3	当前用户或者调用者所在用户
USER_NULL	-1000	未定义用户

//reference code
if (!allow) {
                if (userId == UserHandle.USER_CURRENT_OR_SELF) {
                    // In this case, they would like to just execute as their
                    // owner user instead of failing.
                    targetUserId = callingUserId;
                } else {
                    //......
                    throw new SecurityException(msg);
                }
            }

appId

• system appid: [1000, 9999]
• application appid:[10000, 19999]
• Shared AppGid: [50000, 59999]
• isolated appid: [99000, 99999]

//reference code
int callingAppId = UserHandle.getAppId(callingUid);
       if (callingAppId == Process.SYSTEM_UID || callingAppId == Process.PHONE_UID
           || callingAppId == Process.SHELL_UID || callingAppId == Process.BLUETOOTH_UID
           || callingAppId == Process.NFC_UID || callingUid == 0) {
           // Always okay.
           } else if {
           //.......
           }

权限

发送广播

• intentfilter进行一部分广播的过滤
• sendBroadcast(Intent, String)的接口在发送广播时指定接收者必须具备的permission
• 通过Intent.setPackage设置广播仅对某个程序有效
• protectionLevel 可以设置到签名等级，防止反编译后被第三方应用模拟相同的权限

注册广播

• registerReceiver(BroadcastReceiver, IntentFilter, String, android.os.Handler)的接口指定发送者必须具备的permission
• 对于静态注册的广播可以通过android:exported=”false”属性表示接收者对外部应用程序不可用
• protectionLevel可以设置到签名等级，防止反编译后被第三方应用模拟相同的权限

开源框架 EventBus

背景

广播的缺点

• 它是重量级的，费时的一种方式；

• 可以接受各种系统的通知包括电量变化，系统设置，短信等等，所以就决定了它需要基于android的

  sdk，而且它支持跨进程通信，决定了它必须通过AMS做一次judge.

EventBus的优点

• 它是轻量，快速的一种方式；
• 使用简单。register注册,post发送,onEvent进行事件的处理；
• 提供了观察者所没有的粘滞,优先级的处理逻辑,对齐了broadcastRecevicer;

架构图

流程步骤

注册与注销

1.param
key:消息类型(注册类和回调方法) or 注册类(消息类型)
  Map<Class<?>, CopyOnWriteArrayList<Subscription>> subscriptionsByEventType;//根据消息类型找(类，方法)
Map<Object, List<Class<?>>> typesBySubscriber;//根据类找消息类型


2.register:
2.1
  //类－>方法->消息类型 store in subscriptionsByEventType
subscriptionsByEventType.put(eventType, subscriptions);//eg:subscriptionsByEventType.put(MessageEvent ,new Subscriptions(activity,@method))

2.2
  //类，消息类型 store in typesBySubscriber
 typesBySubscriber.put(subscriber,  subscribedEvents);//eg:typesBySubscriber.put(activity,MessageEvent)


3.unregister:
3.1
  //类->消息类型 delete from subscriptionsByEventType
3.2
  //类 delete from typesBySubscriber

发送

post(Object event)
[
  eventQueue.add(event)
  while (!eventQueue.isEmpty())
]->
postSingleEvent()->
postSingleEventForEventType()->
postToSubscription
[
Poster.equeue() //async,background,main......
PendingPost.obtainPendingPost
eventBus.getExecutorService().execute()
eventBus.invokeSubscriber
]

优先级与粘滞消息的处理
